Produktdetails:
|
Fotografische Fläche: | × 2,4 2,4 Millimeter | Anzahl der Pixel: | 1 |
---|---|---|---|
Abkühlung: | Nicht gekühlt | Eingekapselt: | Metall |
der Verkapselungstyp ist: | TO-5 | Umkehrspannung (max): | 30 V |
Hervorheben: | S2386-5K photoelektrischer Infrarotsensor,Photoelektrischer Infrarotsensor 30 V,Silikon-Fotodioden-Sensor |
Beschreibung des Produkts:

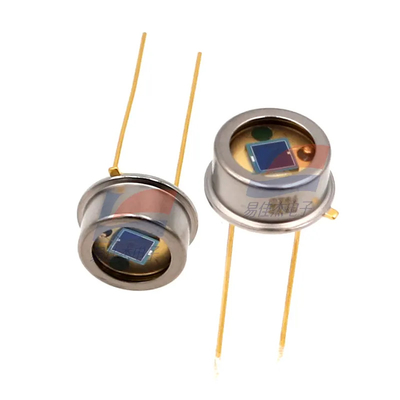

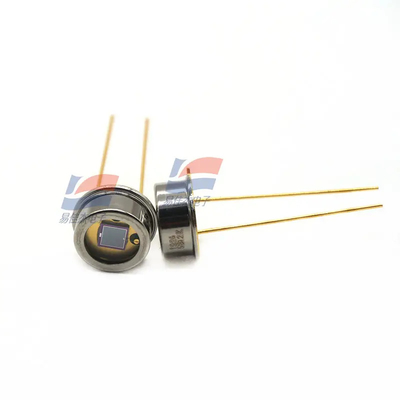

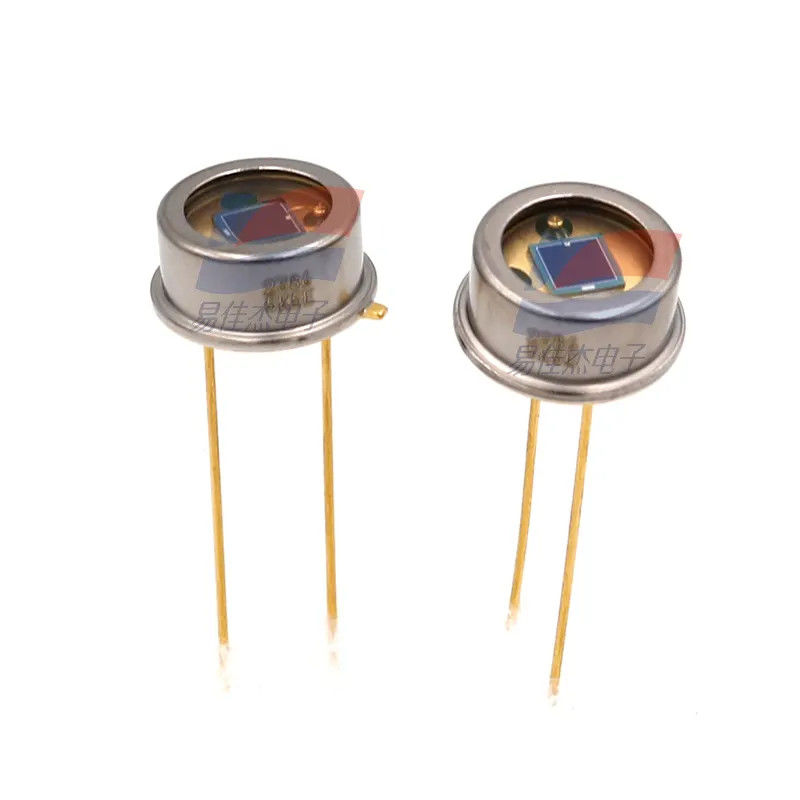

S2386-5K Silikon-Fotodioden-Sensor Infrarot-Fotoelektrischer Sensor 30 V Universal Geberal-Zweckfotometrie
Eigenschaften:
geeignet für sichtbares Licht bis zum nahen Infrarotband, universelle photometrische Bestimmung
Produktmerkmale
● Hohe Empfindlichkeit im sichtbaren bis nahen Infrarotband
● Niedriger dunkler Strom
● Hochverlässlichkeit
● Hohe Linearität
Messbedingung TYP.TA = 25°C, sofern nicht anders angegeben,Fotosensitivität: λ=960 nm, Dunkler Strom: VR=10 mV, Endkapazität:VR=0 V, f=10 kHz
Spezifikationen:
Umkehrspannung (max.) | 30 V |
der Spektralwert beträgt | 320 bis 1100 nm |
Spitzenempfindlichkeitswellenlänge (typischer Wert) | 960 nm |
Empfindlichkeit (typischer Wert) | 0.6 A/W |
Dunkler Strom (maximal) | 5 pA |
Aufstiegszeit (typischer Wert). | 1.8 u s |
Verbindungskapazität (typischer Wert) | 730 pF |
