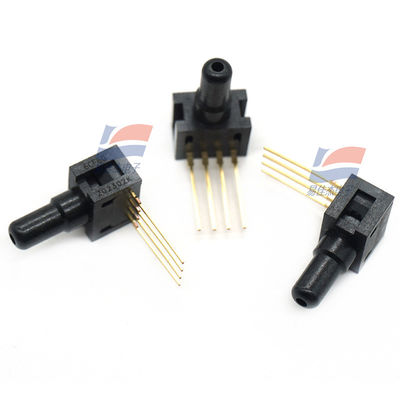

YJJ 26PCFFA6G 100psi Gauge Pressure Sensor Is Used In Industrial Applications Medical Devices And Fields

Product Description:

YJJ 26PCFFA6G 100psi Gauge Pressure Sensor Is Used in Industrial Applications Medical Devices and Fields

Features:

26PC series of low pressure flow micro pressure sensors adopt special micro mechanical piezoresistive sensing elements to achieve stable, accurate and high performance output.Each sensor has four piezoresistive elements and forms a wheatstone bridge.Resistance changes when pressure is applied to it.At the same time, the bridge can output mV voltage proportional to the pressure.The current 26PC series pressure sensors are usually supplied by constant current mode. The terminal voltage of the silicon pressure sensor increases with the increase of temperature, which not only compensates but also indicates the current temperature of the sensor.The low-power, compensated, no-magnification 26PC series pressure sensors are capable of measuring from 1psi to 100psi, providing a wide range of pressure ports and connectors of different specifications.The mV output of the product can be positive voltage or negative voltage, all the design and manufacture are in accordance with ISO 9001 standard.

Advantage in

• the most economical sensor with temperature compensation and calibration functions

• multiple pressure measurement interface configurations are available - easily and quickly modified for specific requirements

• works well even in freezing conditions

• a variety of measurement sensor termination modes are available

• zero and range calibration

• temperature compensation

• interchangeability

• can be used to measure vacuum or positive pressure

Range of application

medical

• oxygen and nitrogen distribution in hospitals

• dental chair

The environment

• flow control valve

• instrumentation

• irrigation equipment

• filter monitoring equipment

Industrial instruments

The robot,

• pressure valves

• leak detection

• air compressor

Medical apparatus and instruments

• gas chromatograph

Specifications:
