Product Description:

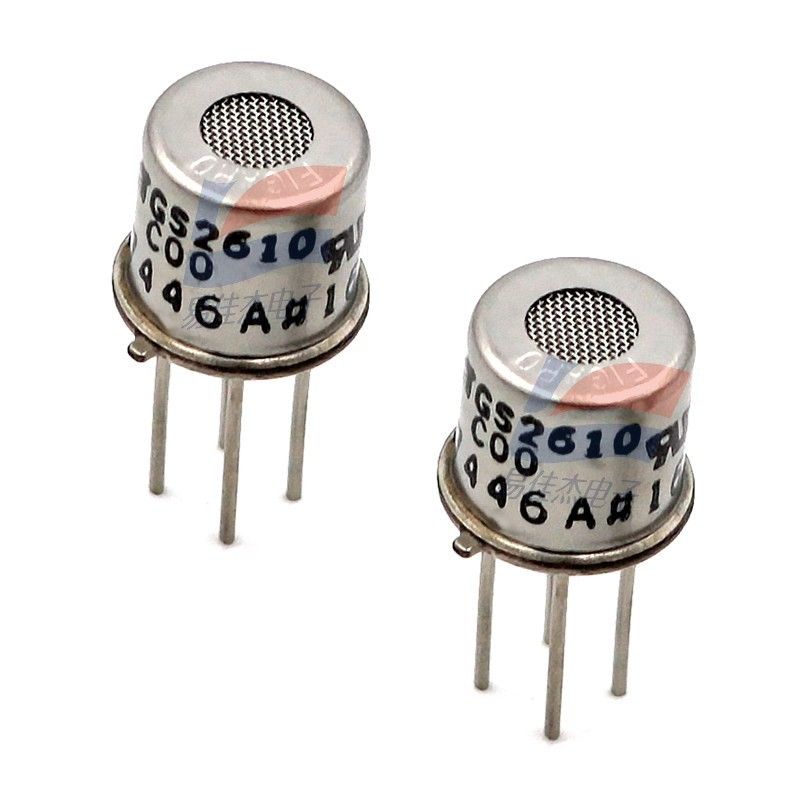

YJJ TGS2610 Is Used For Liquefied Petroleum Gas Combustible Gas Sensors
Features:
I. combustible gas sensor TGS2610(liquefied petroleum gas sensor) main parameters:
Test combustible gas range: 500-10,000 PPM
Sensitivity (resistance ratio) : 0.50-0.62
Heater voltage: 5V 0.2v (DC/AC)
Circuit voltage: 5V 0.2v (DC/AC)
Ii. Combustible gas sensor TGS2610(liquefied petroleum gas sensor)
It is highly sensitive to methane, ethane, propane and other combustible gases.
Long life, low power consumption, small size;
The post-processing circuit is simple;
Main parameters of the TGS2610 gas sensor are as follows:
Detection range
The detectable concentration range of combustible gases is from 500 to 10,000 ppm.
Sensitivity
The resistance ratio (Rs/Ro) is 0.50 - 0.62, where Rs is the resistance value of the sensor in the target gas, and Ro is the resistance value of the sensor in 1800 ppm isobutane.
Voltage parameters
Heater voltage: 5V ± 0.2V (DC/AC)
Circuit voltage: 5V ± 0.2V (DC/AC)
Other features
Size: Compact design
Power consumption: Low power consumption
Life span: Long life span
Circuit design: Simple circuit in the later stage
This sensor is suitable for detecting flammable and explosive gases in both industrial and civilian environments. It has high sensitivity to gases such as methane, ethane, and propane.
Specifications:
| Resistance ratio |
0.50 - 0.62 |
| Heater voltage |
5V ± 0.2V (DC/AC) |
| Product features |
Low pressure differential |
| Application field |
Medical application heating |
