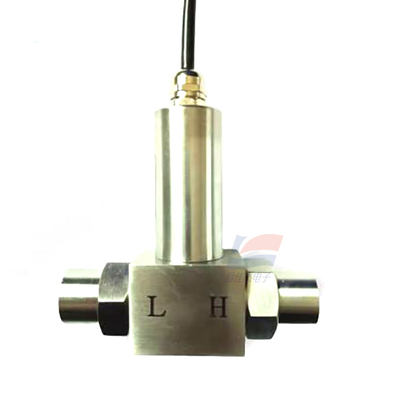

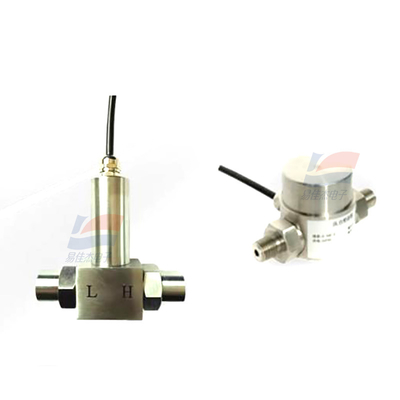

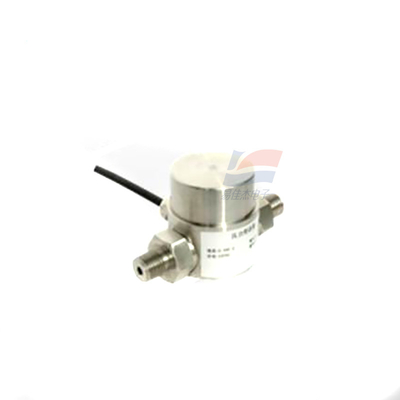

YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available)

YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available)
YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available) YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available) YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available)

Großes Bild :  YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available)

Produktdetails:
Herkunftsort: CHINA
Markenname: YJJ
Modellnummer: GXPS500
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandlungsfähig
Verpackung Informationen: Boxpaket
Lieferzeit: 5-8 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 2200
Kontakt

YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available)

Beschreibung
Modell: GXPS500 Produkttyp: Drucksender für Industriequalität
Druckkernparameter: Druckkernparameter Messbereich: 0 ~ 1 kPa bis 0 ~ 100 kPa (wie 0 ~ 10 kPa, 0 ~ 50 kPa usw.
Genauigkeit: ± 0,5% fs Zero Drift: 25 ℃ ± 5 ℃
Hervorheben:

YJJ GXPS500 differential pressure sensor

,

electronic pressure transmitter with warranty

,

multiple range pressure sensors

Product Description:

YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available)



Features:

GXPS500 is composed of dual isolated differential pressure sensors and an integrated amplifier circuit. It features high stability and excellent dynamic measurement performance. It is equipped with a high-performance microprocessor to correct and compensate for the non-linearity and temperature drift of the sensor, enabling precise digital data transmission, on-site equipment diagnosis, remote two-way communication, etc. It is suitable for use in the measurement and control of liquids and gases. This transmitter has multiple range options to meet the needs of various users. It is widely applied in various fields such as metallurgy, machinery, petroleum, chemical industry, power stations, light industry, food, environmental protection, national defense, and scientific research.

Working principle

The process pressure acts on the sensor, and the sensor outputs a voltage signal proportional to the pressure. The voltage signal is converted into a 4-20mA standard signal through the amplifier circuit. The power supply protection circuit provides excitation for the sensor, and this sensor adopts a precise temperature compensation circuit.



Specifications:



Parameter Description
Model Number GXPS500
Product Category Pressure Transducer
Pressure Type Typically Differential (Note: Confirm specific type based on actual product variant, as some models may support gauge or absolute pressure)
Measuring Range Refer to specific product datasheet (Common ranges for similar series: e.g., 0 to 10 kPa, 0 to 50 kPa, 0 to 100 kPa, etc. - subject to actual GXPS500 model)
Accuracy Generally ±0.5% FS (Full Scale) to ±5% FS (Depends on measurement range and temperature conditions; refer to official datasheet for exact value)
Output Signal Analog Output (Common types: 4-20 mA DC, 0-5 V DC, 0-10 V DC - specific output type varies by model)
Operating Supply Voltage Typical 5 V DC, 12 V DC, or 24 V DC (Confirm with actual product specifications; 5 V DC is common for low-power variants)
Mounting Style Through Hole Mount (Standard for panel or chassis installation; some variants may offer Surface Mount options)
Operating Temperature Range Usually -20°C to +85°C (Industrial grade; extended temperature ranges may be available for specialized models)
Pressure Media Compatibility Compatible with non-corrosive gases or liquids (e.g., air, dry nitrogen, water; avoid exposure to corrosive substances unless specified as chemical-resistant)
Response Time Typically <10 ms (Rise time to 90% of full scale; for fast-response applications, check datasheet for exact value)
Protection Rating IP65 or IP67 (for environmental protection against dust and water ingress; varies by model and application)

YJJ GXPS500 Series Differential Pressure Sensors And Pressure Transmitters (With Multiple Ranges Available) 0



Größe und Tag:

Öl- gefüllter Druck-Sensor,

druckelektrischer Druck-Sensor,

Druckelektrisches Messkreuz
