Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure
Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

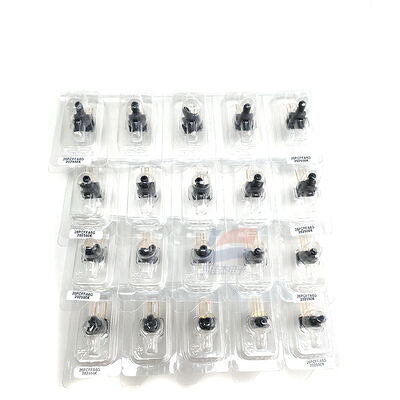

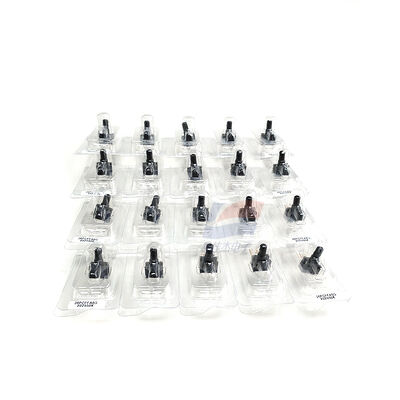

Großes Bild :  Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

Produktdetails:
Herkunftsort: USA
Modellnummer: 26pcffa6g
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandlungsfähig
Verpackung Informationen: Papierbox
Lieferzeit: 3-5work Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 5000 Stück
Kontakt

Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

Beschreibung
Stromversorgungsspannung: 10~16V Arbeitstemperatur: -40 ~ +85
Lagertemperatur: -55~+100 Auswirkungen: 150g
Hervorheben:

medical gas pressure sensor

,

air duct pressure sensor 26PCFFA6G

,

espiratory device pressure sensor



                Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure





Features:

  • High precision piezoresistive gauge pressure sensor with stable performance.
  • Temperature compensated design, minimizes temperature drift error.
  • Unamplified low-level voltage output for high-resolution detection.
  • Wide operating temperature range (-40℃ ~ +85℃), suitable for harsh environments.
  • Compact SIP-4 through-hole package, easy for PCB installation.
  • Compatible with dry gas and non-corrosive liquid media.
  • Fast response time within 1 ms for real-time pressure monitoring.







Applications:

  • Medical Equipment: Respiratory devices, medical gas pressure monitoring.
  • Industrial Automation: Pneumatic and hydraulic system pressure detection.
  • HVAC System: Air duct pressure and fluid pipeline monitoring.
  • Instrumentation: Portable pressure calibrators and testing equipment.
  • General Industry: Nitrogen, oxygen and other inert gas pressure measurement.



Sensor Model 26PCFFA6G
Pressure Type Gauge Pressure
Detection Range 0 ~ 100 PSI
Maximum Overload Pressure 200 PSI
Supply Voltage 10 VDC (Typical)
Output Voltage 0 ~ 100 mV
Response Time ≤ 1 ms
Media Type Dry Gas & Non-corrosive Liquid
Working Temperature -40 ℃ ~ +85 ℃
Package Type SIP-4 Through-hole
Pressure Port Single Axial Barbless Port
Characteristic Temperature Compensated, Unamplified



Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure 0
