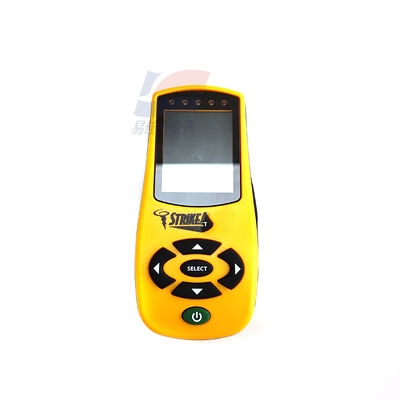

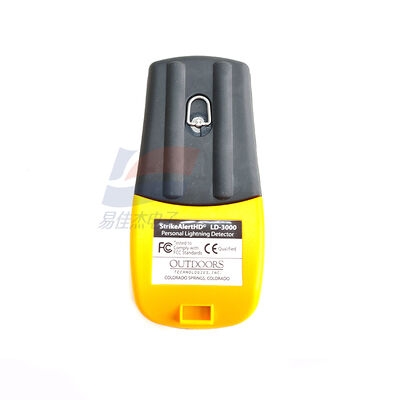

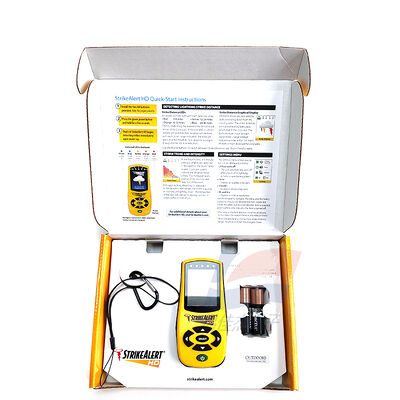

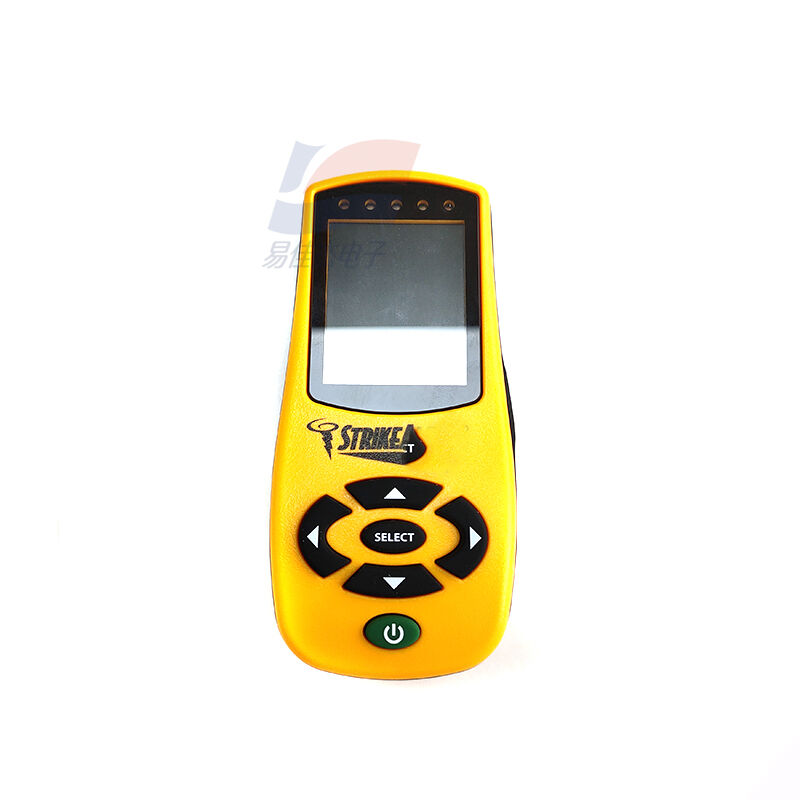

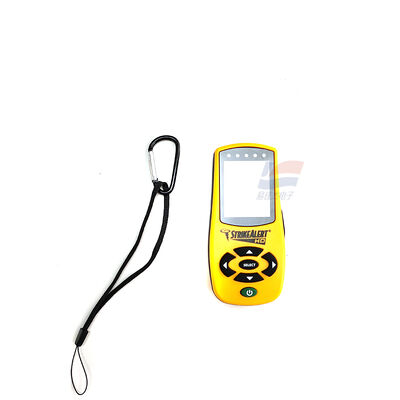

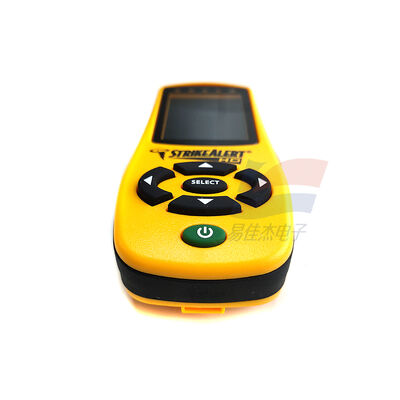

YJJ StrikeAlert HD/LD-3000 Personal/Commercial-Grade Lightning (Thunderbolt) Detector

Product Description:

YJJ StrikeAlert HD LD-3000 Personal / Commercial-grade Lightning (Thunderbolt) Detector

Features:

I. I. Basic Information

Model: StrikeAlert HD / LD-300 Type: Personal / Commercial-grade Lightning (Thunderbolt) Detector

Detection principle: Receive electromagnetic pulses (VLF/LF) generated by lightning discharge, non-radar

Detection range: Up to approximately 40 miles ≈ 64 kilometers

View angle: 360° omnidirectional (no blind zone; many similar devices only have 180°)

Screen: Color graphic LCD, displaying distance, 1-hour trend, intensity

Core parameters

Power supply: 2×AA batteries

Battery life: Approximately 80 hours of continuous operation

Automatic shutdown: No lightning, can automatically shut down 2 hours after no lightning (energy-saving)

Size: Approximately 133×66×25 mm

Weight: Approximately 170g (excluding batteries)

Operating temperature: −10°C ~ +50°C

Alarm methods:

Beeping (volume ≥ 85dB)

Vibration

Screen prompt + 5-level LED distance indicator

Distance classification (LED + screen):

24–40 miles (38–64km): Green

12–24 miles (19–38km): Yellow

6–12 miles (9–19km): Orange

<6 miles (<9km): Red (danger)

Main applications

Outdoor personal safety warning

Golf, camping, hiking, mountain climbing, cycling, fishing

Golf course, sports field, event activities (preventing lightning accidents) strikealert.com.au

Construction / outdoor work safety

Construction, power, communication towers, oil and gas, mining, etc. open-air operations

Early warning of thunderstorms to arrange shutdown and evacuation times

Maritime / water activities

Sailing, yachting, water sports lightning warning

Weather and security assistance

Small weather stations, farms, pastures, scenic areas lightning monitoring

Record thunderstorm trends: approaching / away / stationary

Working principle (simplified)

Lightning discharge generates very strong low-frequency electromagnetic pulses that spread far.

The LD-3000 has an internal antenna to receive this signal. The signal strength is converted into distance and intensity.

The algorithm filters interference (motors, high-voltage electricity, mobile phone signals, etc.) to reduce false alarms.

Output: Distance, trend, sound, light, and vibration alarms.

Difference from radar

LD-3000: Measuring lightning electromagnetic signals → Warning of thunderstorms, lightning protection.

Radar (such as speed measurement / collision prevention): Emit radio waves → Measuring distance and speed of objects

Specifications:
